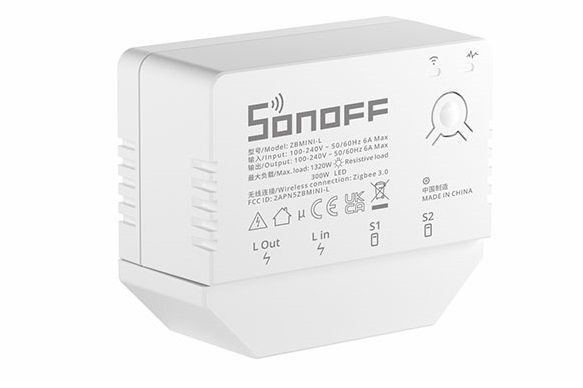

Sonoff ZBMINI-L Zigbee 3.0 Smart Switch

SKU: 00070
In stock

15,99 €

  • Type: Smart Switch
  • Current: 6A
  • Din Rail Mount: Optional (With DIN Rail Tray)
  • Output: 1 X Line Out/1 X Dry Contact
  • Mode: Interlock/self-locking/inching
  • Wattage: 1380W
  • Input : 100-240V/AC/50/60Hz-6A-Max
  • Output : 100-240V/AC/50/60Hz-6A-Max
  • Max load :  Resistive load :1380W Max @230V, 720W Max @120V / LED:300W Max @230V, 150W Max @120V
  • Communication distance : Up to 50m (Empty environment)
  • Wireless connection : Zigbee 3.0
  • Working temperature : -10~40℃
  • Casing material : PC V0
  • Product Size : 54x45x24mm
  • Certification : TUV/CE/FCC/UKCA/RoHS

Did you like this product? Add to favorites now and follow the product.

Add to wishlist
Have a Question? Ask a Specialist

Categories: ,
Brand:

Description

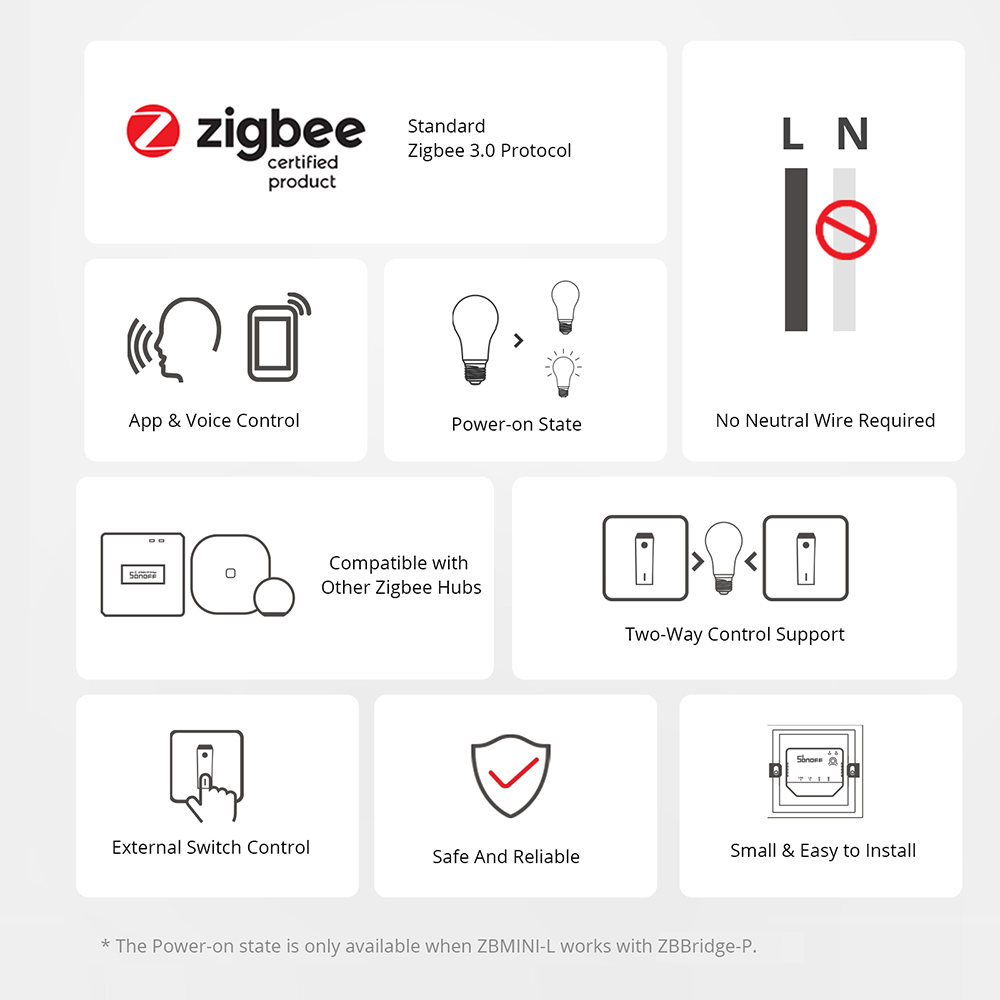

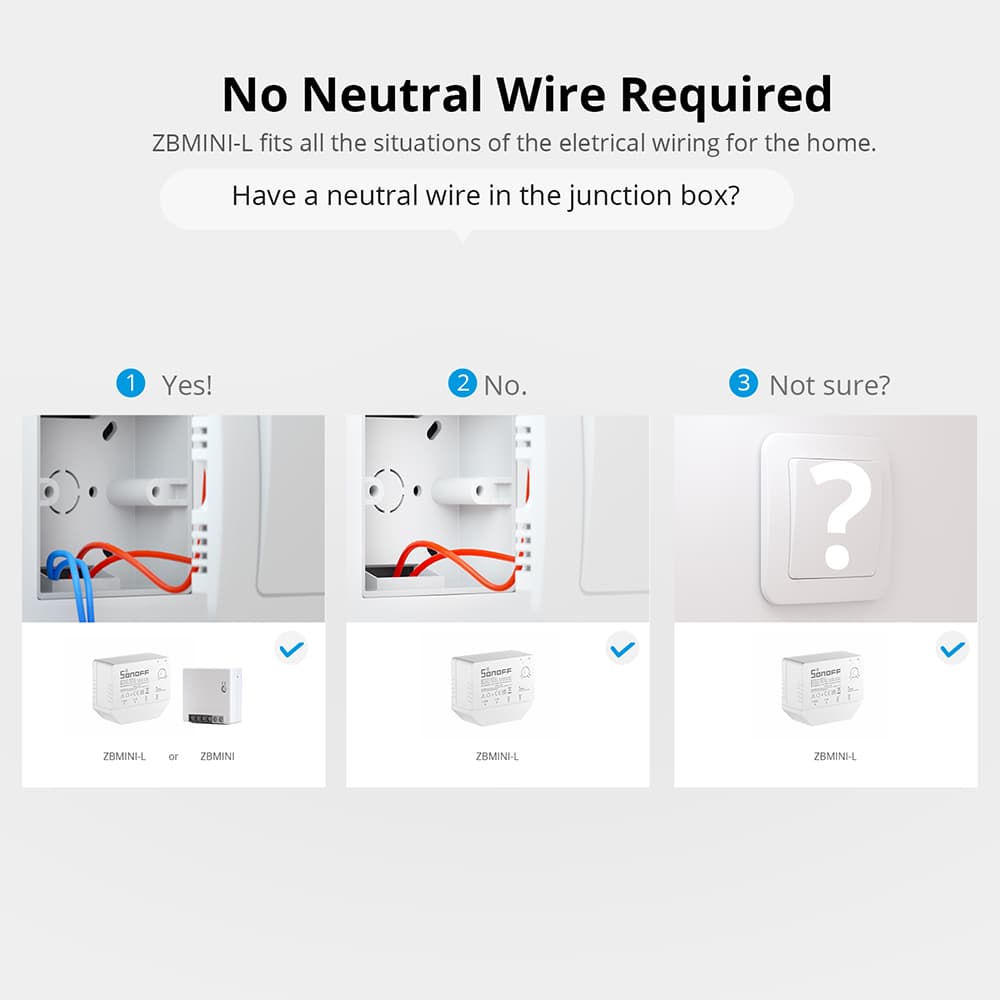

  • No Neutral Wire Required : Single live wire Zigbee 3.0 protocol smart switch, fits all the situations of the electrical wiring for the home

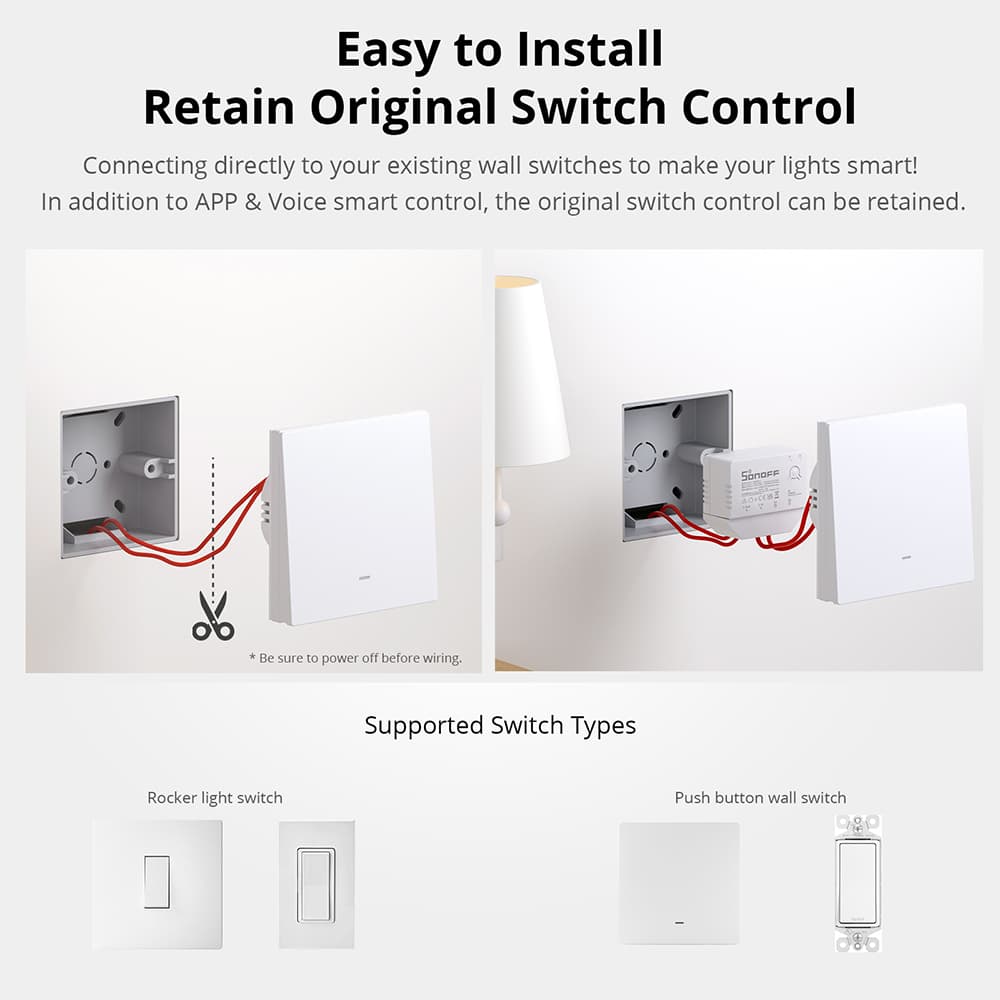

  • External Switch Connected : Supported rocker light switch and push-button wall switch
  • Compatible with other Zigbee Hubs : Supports being added to any Zigbee hub developed according to the standard protocol, including Amazon Alexa Echo Speaker (Built-in Zigbee Hub), Samsung SmartThings Hub, SONOFF Zigbee Bridge Pro, ZBBridge, SONOFF Zigbee Dongle Plus

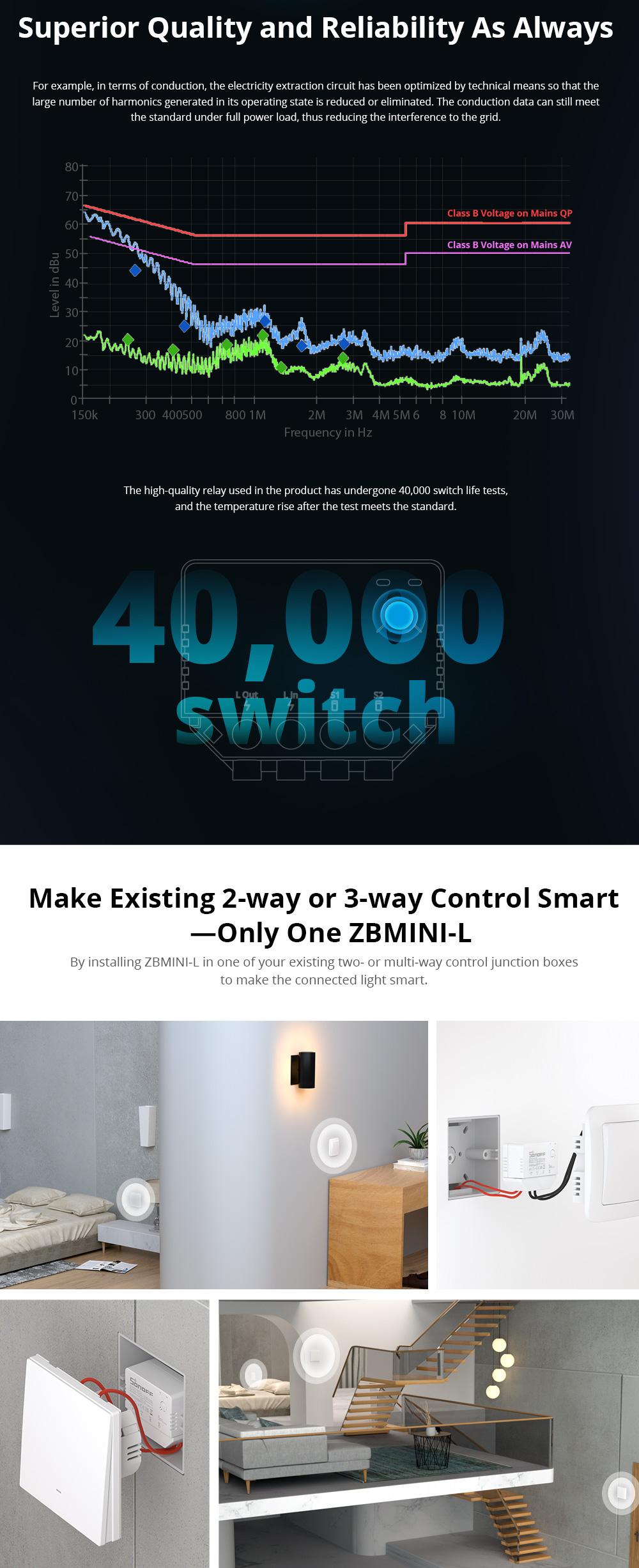

  • Two-way Control : By installing ZBMINI-L in one of your existing two- or multi-way control junction boxes to make the connected light smart
  • Safety and Reliability : In addition to the CE, FCC certification, ZBMINI-L has also passed the TÜV certification

https://www.youtube.com/watch?v=cSIa7EZMiA4

Datasheet
